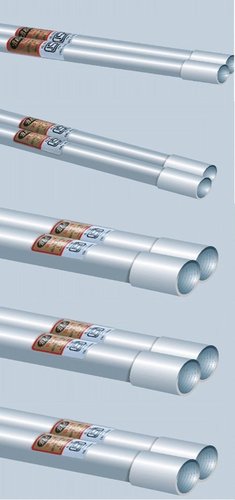

Steel Conduit Pipe
Product Details:
- Thread Type NPT or specific industry standard threads
- Connection Type Push-fit or threaded connection
- Flexibility Rigid
- Diameter Various sizes available
- Coating Type Galvanized
- Tolerance Industry standard tolerances
- Product Type Conduit Pipe
- Click to View more
X
Steel Conduit Pipe Product Specifications
- Round
- Various sizes available
- Industry standard tolerances
- Designed for electrical conduit systems
- Galvanized coating
- IS:9537 or relevant industry standards
- Silver
- Slip fit or threaded
- Manufacturer default warranty applies
- Rigid
- Steel
- Galvanized
- Various sizes available
- Electrical wiring and protection
- Conduit Pipe
- Push-fit or threaded connection
- NPT or specific industry standard threads
- Circular
- Standard lengths e.g. 3m or 6m
- Standard thickness e.g. 1mm or 1.5mm
Product Description
Steel Conduits
ISI marked black stove enamelled Steel Conduit Pipes and Galvanized Steel Conduit Pipes are manufactured as per the following IS:9537 (Part II)/1981 dimensions.
| Nominal size of conduit (in mm) | Outside diameter (in mm) | Tolerance in outside diameter (in mm) | Wall thickness of conduit pipes (in mm) |
| 20 | 20 | -0.3 | 1.4 to 1.8 |
| 25 | 25 | -0.4 | 1.4 to 1.8 |
| 32 | 32 | -0.4 | 1.4 to 1.8 |
| 40 | 40 | -0.4 | 1.6 to 2.2 |
| 50 | 50 | -0.5 | 1.6 to 2.2 |
B.E.C also manufactures conduit pipes in various other colours such as Red, Green, Yellow, Blue, White or any colours as per requirement. In addition to this, GI conduits with epoxy coating are also manufactured for extra heavy protection for specific job requirements.
